Roof Sheet Roll Forming Machine (30m/min)
Novotek high speed steel roof tile sheets are the new substitutes for traditional clayey, concrete tiles. By using fly cut, the machine speed can up to 30-40m/min including cut.
They are popular because of their low cost, short building period; re-cycle use, and elegant appearance. They can be used as the roof of villas, luxury houses, theatres, exhibition centers.

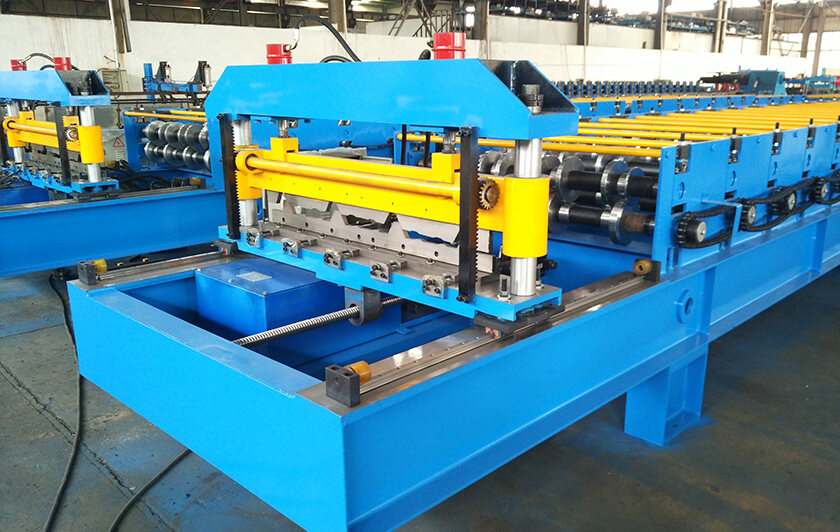

Main Machine of Roof Sheet Machine
1. Roll stand: 16 stations, it includes leveling rollers, main forming rollers
2. Main motor power: 5.5KW, it adopts cycloid cone pulley reducer, chain or gearbox transmission
3. Material of the roller: 45# high grade steel, chromeplate
4. The roller processed by CNC machine with finish machining. The surface adopt finished polishing, the roughness is 0.05mm
5. Material of the main shaft: 45# forged steel with heat treatment
6. The diameter of the main shaft: Φ70mm
7. Machine frame: welding by 350 x 175mm H shape steel, by using carbon dioxide gas arc welding. The surface used shot blasting treatment.
Electric Control System of Roof Sheet Tile Machine
1. Control system: PLC (OMRON or MITSUBISHI brand)
2. Operation platform: touch screen and press button
3. Main motor: AC frequency conversion electric motor
4. Inverter (HOLIP brand), Touch panel (WEINVIEW or MITSUBISHI brand), low voltage electric parts (CHINT brand)
Specification
| Item | Parameters |
| Coil thickness (mm) | 0.3-0.7 |
| Roll stand | 16 |
| Main power (Kw) | 5.5 |
| Main shaft (mm) | Ø70 |
| Cutter material | Cr12 |
| Cutting accuracy | 10±2mm |
| Hydraulic station power (Kw) | 4 |
| Control system | PLC |
| Main machine dimension (mm) | 8500 x 1000 x 80 |
